The Drawable class is the base class of rendered elements (stage, sprites, text bubbles). More...

#include <scratchcpp/drawable.h>

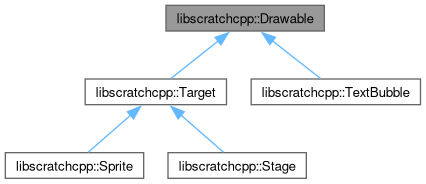

Inheritance diagram for libscratchcpp::Drawable:

[legend]

Public Member Functions
	Drawable ()

	Drawable (const Drawable &)=delete

virtual bool	isTarget () const

virtual bool	isTextBubble () const

int	layerOrder () const

virtual void	setLayerOrder (int newLayerOrder)

sigslot::signal< int > &	layerOrderChanged () const

IEngine *	engine () const

virtual void	setEngine (IEngine *engine)

Detailed Description

The Drawable class is the base class of rendered elements (stage, sprites, text bubbles).

Constructor & Destructor Documentation

◆ Drawable() [1/2]

Drawable::Drawable ( )

Constructs Drawable.

◆ Drawable() [2/2]

libscratchcpp::Drawable::Drawable ( const Drawable & )

delete

Member Function Documentation

◆ engine()

IEngine * Drawable::engine ( ) const

Returns the engine.

◆ isTarget()

virtual bool libscratchcpp::Drawable::isTarget ( ) const

inlinevirtual

Returns true if this Drawable is a Target.

Reimplemented in libscratchcpp::Target.

◆ isTextBubble()

virtual bool libscratchcpp::Drawable::isTextBubble ( ) const

inlinevirtual

Returns true if this Drawable is a TextBubble.

Reimplemented in libscratchcpp::TextBubble.

◆ layerOrder()

int Drawable::layerOrder ( ) const

Returns the layer number.

◆ layerOrderChanged()

sigslot::signal< int > & Drawable::layerOrderChanged ( ) const

Emits when the layer number changes.

◆ setEngine()

void Drawable::setEngine ( IEngine * engine )

virtual

Sets the engine.
