The Target class is the Stage or a Sprite. More...

#include <scratchcpp/target.h>

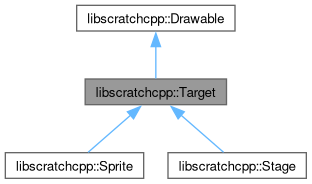

Inheritance diagram for libscratchcpp::Target:

[legend]

Collaboration diagram for libscratchcpp::Target:

Public Member Functions
	Target ()

	Target (const Target &)=delete

virtual	~Target ()

bool	isTarget () const override final

virtual bool	isStage () const

const std::string &	name () const

void	setName (const std::string &name)

const std::vector< std::shared_ptr< Variable > > &	variables () const

int	addVariable (std::shared_ptr< Variable > variable)

std::shared_ptr< Variable >	variableAt (int index) const

int	findVariable (const std::string &variableName) const

int	findVariableById (const std::string &id) const

ValueData **	variableData ()

const std::vector< std::shared_ptr< List > > &	lists () const

int	addList (std::shared_ptr< List > list)

std::shared_ptr< List >	listAt (int index) const

int	findList (const std::string &listName) const

int	findListById (const std::string &id) const

List **	listData ()

const std::vector< std::shared_ptr< Block > > &	blocks () const

int	addBlock (std::shared_ptr< Block > block)

std::shared_ptr< Block >	blockAt (int index) const

int	findBlock (const std::string &id) const

std::vector< std::shared_ptr< Block > >	greenFlagBlocks () const

const std::vector< std::shared_ptr< Comment > > &	comments () const

int	addComment (std::shared_ptr< Comment > comment)

std::shared_ptr< Comment >	commentAt (int index) const

int	findComment (const std::string &id) const

int	costumeIndex () const

virtual void	setCostumeIndex (int newCostumeIndex)

std::shared_ptr< Costume >	currentCostume () const

virtual int	currentCostumeWidth () const

virtual int	currentCostumeHeight () const

const std::vector< std::shared_ptr< Costume > > &	costumes () const

int	addCostume (std::shared_ptr< Costume > costume)

std::shared_ptr< Costume >	costumeAt (int index) const

int	findCostume (const std::string &costumeName) const

const std::vector< std::shared_ptr< Sound > > &	sounds () const

int	addSound (std::shared_ptr< Sound > sound)

std::shared_ptr< Sound >	soundAt (int index) const

int	findSound (const std::string &soundName) const

double	volume () const

void	setVolume (double newVolume)

virtual double	soundEffectValue (Sound::Effect effect) const

virtual void	setSoundEffectValue (Sound::Effect effect, double value)

virtual void	clearSoundEffects ()

virtual Rect	boundingRect () const

virtual Rect	fastBoundingRect () const

bool	touchingSprite (Sprite *sprite) const

virtual bool	touchingPoint (double x, double y) const

bool	touchingEdge () const

virtual bool	touchingColor (Rgb color) const

virtual bool	touchingColor (Rgb color, Rgb mask) const

double	graphicsEffectValue (IGraphicsEffect *effect) const

virtual void	setGraphicsEffectValue (IGraphicsEffect *effect, double value)

virtual void	clearGraphicsEffects ()

TextBubble *	bubble ()

const TextBubble *	bubble () const

void	setEngine (IEngine *engine) override final

virtual bool	isTextBubble () const

int	layerOrder () const

virtual void	setLayerOrder (int newLayerOrder)

sigslot::signal< int > &	layerOrderChanged () const

IEngine *	engine () const

Protected Member Functions
virtual Target *	dataSource () const

virtual bool	touchingClones (const std::vector< Sprite * > &clones) const

Detailed Description

The Target class is the Stage or a Sprite.

Constructor & Destructor Documentation

◆ Target() [1/2]

Target::Target ( )

Constructs target.

◆ Target() [2/2]

libscratchcpp::Target::Target ( const Target & )

delete

◆ ~Target()

Target::~Target ( )

virtual

Destroys Target.

Member Function Documentation

◆ addBlock()

int Target::addBlock ( std::shared_ptr< Block > block )

Adds a block and returns its index.

◆ addComment()

int Target::addComment ( std::shared_ptr< Comment > comment )

Adds a comment and returns its index.

◆ addCostume()

int Target::addCostume ( std::shared_ptr< Costume > costume )

Adds a costume and returns its index.

◆ addList()

int Target::addList ( std::shared_ptr< List > list )

Adds a list and returns its index.

◆ addSound()

int Target::addSound ( std::shared_ptr< Sound > sound )

Adds a sound and returns its index.

◆ addVariable()

int Target::addVariable ( std::shared_ptr< Variable > variable )

Adds a variable and returns its index.

◆ blockAt()

std::shared_ptr< Block > Target::blockAt ( int index ) const

Returns the block at index.

◆ blocks()

const std::vector< std::shared_ptr< Block > > & Target::blocks ( ) const

Returns the list of blocks.

◆ boundingRect()

Rect Target::boundingRect ( ) const

virtual

Returns the bounding rectangle of the sprite.

Reimplemented in libscratchcpp::Sprite, and libscratchcpp::Stage.

◆ bubble() [1/2]

TextBubble * Target::bubble ( )

Returns the Bubble of this Target.

◆ bubble() [2/2]

const TextBubble * Target::bubble ( ) const

Returns the Bubble of this Target.

◆ clearGraphicsEffects()

void Target::clearGraphicsEffects ( )

virtual

Sets the value of all graphics effects to 0 (clears them).

Reimplemented in libscratchcpp::Sprite, and libscratchcpp::Stage.

◆ clearSoundEffects()

void Target::clearSoundEffects ( )

virtual

Sets the value of all sound effects to 0 (clears them).

◆ commentAt()

std::shared_ptr< Comment > Target::commentAt ( int index ) const

Returns the comment at index.

◆ comments()

const std::vector< std::shared_ptr< Comment > > & Target::comments ( ) const

Returns the list of comments in the code area.

◆ costumeAt()

std::shared_ptr< Costume > Target::costumeAt ( int index ) const

Returns the costume at index.

◆ costumeIndex()

int Target::costumeIndex ( ) const

Returns the index of the current costume.

◆ costumes()

const std::vector< std::shared_ptr< Costume > > & Target::costumes ( ) const

Returns the list of costumes.

◆ currentCostume()

std::shared_ptr< Costume > Target::currentCostume ( ) const

Returns the currently set costume.

◆ currentCostumeHeight()

int Target::currentCostumeHeight ( ) const

virtual

Returns the height of the current costume.

Reimplemented in libscratchcpp::Sprite, and libscratchcpp::Stage.

◆ currentCostumeWidth()

int Target::currentCostumeWidth ( ) const

virtual

Returns the width of the current costume.

Reimplemented in libscratchcpp::Sprite, and libscratchcpp::Stage.

◆ dataSource()

virtual Target * libscratchcpp::Target::dataSource ( ) const

inlineprotectedvirtual

Override this method to set a custom data source for blocks, assets, comments, etc.

◆ engine()

IEngine * Drawable::engine ( ) const

inherited

Returns the engine.

◆ fastBoundingRect()

Rect Target::fastBoundingRect ( ) const

virtual

Returns the less accurate bounding rectangle of the sprite which is calculated by transforming the costume rectangle.

Reimplemented in libscratchcpp::Sprite, and libscratchcpp::Stage.

◆ findBlock()

int Target::findBlock ( const std::string & id ) const

Returns the index of the block with the given ID.

◆ findComment()

int Target::findComment ( const std::string & id ) const

Returns the index of the comment with the given ID.

◆ findCostume()

int Target::findCostume ( const std::string & costumeName ) const

Returns the index of the given costume.

◆ findList()

int Target::findList ( const std::string & listName ) const

Returns the index of the list with the given name.

◆ findListById()

int Target::findListById ( const std::string & id ) const

Returns the index of the list with the given ID.

◆ findSound()

int Target::findSound ( const std::string & soundName ) const

Returns the index of the sound with the given name.

◆ findVariable()

int Target::findVariable ( const std::string & variableName ) const

Returns the index of the variable with the given name.

◆ findVariableById()

int Target::findVariableById ( const std::string & id ) const

Returns the index of the variable with the given ID.

◆ graphicsEffectValue()

double Target::graphicsEffectValue ( IGraphicsEffect * effect ) const

Returns the value of the given graphics effect.

◆ greenFlagBlocks()

std::vector< std::shared_ptr< Block > > Target::greenFlagBlocks ( ) const

Returns list of all "when green flag clicked" blocks.

◆ isStage()

virtual bool libscratchcpp::Target::isStage ( ) const

inlinevirtual

Returns true if this Target is the stage.

Reimplemented in libscratchcpp::Stage.

◆ isTarget()

bool Target::isTarget ( ) const

finaloverridevirtual

Returns true.

Reimplemented from libscratchcpp::Drawable.

◆ isTextBubble()

virtual bool libscratchcpp::Drawable::isTextBubble ( ) const

inlinevirtualinherited

Returns true if this Drawable is a TextBubble.

Reimplemented in libscratchcpp::TextBubble.

◆ layerOrder()

int Drawable::layerOrder ( ) const

inherited

Returns the layer number.

◆ layerOrderChanged()

sigslot::signal< int > & Drawable::layerOrderChanged ( ) const

inherited

Emits when the layer number changes.

◆ listAt()

std::shared_ptr< List > Target::listAt ( int index ) const

Returns the list at index.

◆ listData()

List ** Target::listData ( )

Returns an array of list pointers (for optimized list access).

◆ lists()

const std::vector< std::shared_ptr< List > > & Target::lists ( ) const

Returns the list of Scratch lists.

◆ name()

const std::string & Target::name ( ) const

Returns the name of the target.

◆ setCostumeIndex()

void Target::setCostumeIndex ( int newCostumeIndex )

virtual

Sets the index of the current costume.

Reimplemented in libscratchcpp::Sprite, and libscratchcpp::Stage.

◆ setEngine()

void Target::setEngine ( IEngine * engine )

finaloverridevirtual

Overrides Drawable::setEngine().

Reimplemented from libscratchcpp::Drawable.

◆ setGraphicsEffectValue()

void Target::setGraphicsEffectValue	(	IGraphicsEffect *	effect,
		double	value )

virtual

Sets the value of the given graphics effect.

Reimplemented in libscratchcpp::Sprite, and libscratchcpp::Stage.

◆ setLayerOrder()

void Drawable::setLayerOrder ( int newLayerOrder )

virtualinherited

Sets the layer number.

Reimplemented in libscratchcpp::Sprite.

◆ setName()

void Target::setName ( const std::string & name )

Sets the name of the target.

Note: Setting the name to one of the reserved names (mouse, stage, edge, myself, random) won't do anything.

◆ setSoundEffectValue()

void Target::setSoundEffectValue	(	Sound::Effect	effect,
		double	value )

virtual

Sets the value of the given sound effect.

◆ setVolume()

void Target::setVolume ( double newVolume )

Sets the volume of all sounds of this target.

◆ soundAt()

std::shared_ptr< Sound > Target::soundAt ( int index ) const

Returns the sound at index.

◆ soundEffectValue()

double Target::soundEffectValue ( Sound::Effect effect ) const

virtual

Returns the value of the given sound effect.

◆ sounds()

const std::vector< std::shared_ptr< Sound > > & Target::sounds ( ) const

Returns the list of sounds.

◆ touchingClones()

virtual bool libscratchcpp::Target::touchingClones ( const std::vector< Sprite * > & clones ) const

inlineprotectedvirtual

Override this method to check whether the target touches the given sprite clones.

◆ touchingColor() [1/2]

bool Target::touchingColor ( Rgb color ) const

virtual

Returns true if the Target is touching the given color (RGB triplet).

Reimplemented in libscratchcpp::Sprite, and libscratchcpp::Stage.

◆ touchingColor() [2/2]

bool Target::touchingColor	(	Rgb	color,
		Rgb	mask ) const

virtual

Returns true if the mask part of the Target is touching the given color (RGB triplet).

Reimplemented in libscratchcpp::Sprite, and libscratchcpp::Stage.

◆ touchingEdge()

bool Target::touchingEdge ( ) const

Returns true if the target is touching the edge.

◆ touchingPoint()

bool Target::touchingPoint	(	double	x,
		double	y ) const

virtual

Returns true if the Target is touching the given point (in Scratch coordinates).

Reimplemented in libscratchcpp::Sprite, and libscratchcpp::Stage.

◆ touchingSprite()

bool Target::touchingSprite ( Sprite * sprite ) const

Returns true if the Target is touching the given Sprite (or its clones).

◆ variableAt()

std::shared_ptr< Variable > Target::variableAt ( int index ) const

Returns the variable at index.

◆ variableData()

ValueData ** Target::variableData ( )

Returns an array of raw variable data pointers (for optimized variable access).

◆ variables()

const std::vector< std::shared_ptr< Variable > > & Target::variables ( ) const

Returns the list of variables.

◆ volume()

double Target::volume ( ) const

Returns the volume.

The documentation for this class was generated from the following files:

include/scratchcpp/target.h
src/scratch/target.cpp

Public Member Functions

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ Target() [1/2]

◆ Target() [2/2]

◆ ~Target()

Member Function Documentation

◆ addBlock()

◆ addComment()

◆ addCostume()

◆ addList()

◆ addSound()

◆ addVariable()

◆ blockAt()

◆ blocks()

◆ boundingRect()

◆ bubble() [1/2]

◆ bubble() [2/2]

◆ clearGraphicsEffects()

◆ clearSoundEffects()

◆ commentAt()

◆ comments()

◆ costumeAt()

◆ costumeIndex()

◆ costumes()

◆ currentCostume()

◆ currentCostumeHeight()

◆ currentCostumeWidth()

◆ dataSource()

◆ engine()

◆ fastBoundingRect()

◆ findBlock()

◆ findComment()

◆ findCostume()

◆ findList()

◆ findListById()

◆ findSound()

◆ findVariable()

◆ findVariableById()

◆ graphicsEffectValue()

◆ greenFlagBlocks()

◆ isStage()

◆ isTarget()

◆ isTextBubble()

◆ layerOrder()

◆ layerOrderChanged()

◆ listAt()

◆ listData()

◆ lists()

◆ name()

◆ setCostumeIndex()

◆ setEngine()

◆ setGraphicsEffectValue()

◆ setLayerOrder()

◆ setName()

◆ setSoundEffectValue()

◆ setVolume()

◆ soundAt()

◆ soundEffectValue()

◆ sounds()

◆ touchingClones()

◆ touchingColor() [1/2]

◆ touchingColor() [2/2]

◆ touchingEdge()

◆ touchingPoint()

◆ touchingSprite()

◆ variableAt()

◆ variableData()

◆ variables()

◆ volume()
